SOM-roadmap
timeline
title NHX7448 roadmap
section 2017
WIFI5 : NHX4019 <MP>
section 2020
WIFI6 : NHX6018 <MP>
section 2021
WIFI6 : NHX5018 <MP>
section 2024
WIFI7 : NHX53X2 <MP>
section 2025
WIFI6E : NHX5018-V03 <ES>
WIFI7 : NHX5424 <ES>
Software Defined Wi-Fi Radio
- For different radio configurations, you only need to reload the product model code (reload wifi driver)
| Hardware model | Product model | wifi0 | wifi1 | wifi2 |
|---|---|---|---|---|
| NHX53X2-V03 | NHX53X2-V03-222-NPN-512M16-D4 | 2x2 2.4GHz | 2x2 5GHz | 2x2 6GHz |
| NHX53X2-V03 | NHX53X2-V03-22LH-NPN-512M16-D4 | 2x2 2.4GHz | 2x2 5GHz low | 2x2 5GHz high |
| NHX53X2-V03 | NHX53X2-V03-22L2-NPN-512M16-D4 | 2x2 2.4GHz | 2x2 5GHz low band | 2x2 5GHz high band – 6GHz |
| NHX53X2-V03 | NHX53X2-V03-22H2-NPN-512M16-D4 | 2x2 2.4GHz | 2x2 5GHz high band | 2x2 6GHz |
| NHX53X2-V03 | NHX53X2-V03-244-NPN-512M16-D4 | 2x2 2.4GHz | 4x4 5GHz – 6GHz |
Contents
NHX7448 Series Specifications
HW
| NHX-SOM | NHX4019 -V03 | NHX5018 -V01 | NHX5018 -V03 | NHX6018 -V03 | NHX53X2 -V01 | NHX53X2 -V02 | NHX53X2 -V03 | NHX53X2 -V04 | NHX53X2 -V05 |
|---|---|---|---|---|---|---|---|---|---|
| WiFi4 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| WiFi5 | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| WiFi6 | Y | Y | Y | Y | Y | Y | Y | Y | |
| WiFi6e | Y | Y | Y | Y | Y | ||||
| WiFi7 | Y | Y | Y | Y | Y | ||||
| SOM Footprint | Stamp hole | Stamp hole | Stamp hole | Stamp hole | Stamp hole | Stamp hole | Stamp hole | Stamp hole | Stamp hole |
| Dimensions | 74x48mm | 74x48mm | 74x48mm | 74x48mm | 74x48mm | 74x48mm | 74x48mm | 74x48mm | 74x48mm |
| Industrial grade | Y | N | N | Y | Y | Y | Y | Y | Y |
| Memory | 512MB | 512MB | 512MB | 1GB | 1GB | 1GB | 1GB | 1GB | 1GB |
| NOR | 8MB | 8MB | 8MB | 8MB | 8MB | 8MB | 8MB | 8MB | 8MB |
| NAND | 128MB | 256MB | 256MB | 128MB | 256MB | 256MB | 256MB | 256MB | 256MB |
| EEPROM | 128 Kbits | 128 Kbits | 128 Kbits | 128 Kbits | 128 Kbits | 128 Kbits | 128 Kbits | 128 Kbits | 128 Kbits |
| Operating Voltage | 6.5V-16V | 6.5V-16V | 6.5V-16V | 6.5V-16V | 6.5V-16V | 6.5V-16V | 6.5V-16V | 6.5V-16V | 6.5V-16V |
| Antenna quantity | 2 | 2 | 6 | 2 | 6 | 2 | 6 | 2 | 2 |
| mimo | 2x2+2x2 | 2x2+2x2 | 2x2+4x4 | 2x2+2x2 | 2x2+2x2+2x2 | 2x2+2x2 | 2x2+4x4 | 2x2+2x2 | 2x2+2x2 |
| 2.4GHz Data rates | 400Mbps | 574Mbps | 574Mbps | 574Mbps | 688.2Mbps | 688.2Mbps | 688.2Mbps | 688.2Mbps | 688.2Mbps |
| 5GHz Data rates | 867Mbps | 2474 Mbps | 4948Mbps | 1201Mbps | 2474Mbps | 2474Mbps | 4948Mbps | 2474Mbps | 2474Mbps |
| 6GHz Data rates | 5764.8Mbps | 5764.8Mbps | 5764.8Mbps | 5764.8Mbps | |||||
| 2.4Ghz mcs0 TX power | 27dBm | 27dBm | 27dBm | 27dBm | 27dBm | 27dBm | 27dBm | 27dBm | 27dBm |
| 5Ghz mcs0 TX power | 26dBm | 26dBm | 26dBm | 26dBm | 26dBm | 26dBm | 26dBm | 26dBm | 26dBm |
| 6Ghz mcs0 TX power | 24dBm | 24dBm | 24dBm | 24dBm | |||||
| 2.4Ghz mcs0 MIN RSSI | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm |
| 5Ghz mcs0 MIN RSSI | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm | -95dBm |
| 6Ghz mcs0 MIN RSSI | -95dBm | -95dBm | -95dBm | -95dBm | |||||
| Ethernet | 5x1GE | 5x1GE | 5x1GE | 5x1GE | 4x 2.5GE+1x 10GE | 4x 2.5GE | 4x 2.5GE+1x 10GE | 4x 2.5GE | 5x1GE |
| PCIE | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| USB3.0 | 1x | 1x | 1x | 1x | 1x | 1x | 1x | 1x | 1x |
| USB2.0 | 1x | 1x | |||||||
| UART | 2 | 2 | 2 | 6 | 2 | 2 | 2 | 2 | 2 |
| Y | Y | Y | Y | Y | Y | Y | Y | Y | |
| Features | Lowest unit price | Lowest unit price for WiFi6 | Best Wi-Fi Performance for WiFi6e | Best overall performance for WiFi6 | Best overall performance for WiFi7 | High power dual band for WiFi7 | Full band support for WiFi7 | Best value for money 2.5G Ethernet for WiFi7 | Best cost performance for WiFi7 |
| Module release status | In supply | In supply | ES | In supply | In supply | In supply | In supply | In supply | In supply |
: Our company provides all the materials required for FCC/CE certification, including modulation wave, single carrier debugging command
SW
| NHX-SOM | NHX4019 -V03 | NHX5018 -V01 | NHX5018 -V03 | NHX6018 -V03 | NHX53X2 -V01 | NHX53X2 -V02 | NHX53X2 -V03 | NHX53X2 -V04 | NHX53X2 -V05 |
|---|---|---|---|---|---|---|---|---|---|
| NSS features | Y | Y | Y | Y | Y | Y | Y | Y | |
| Secondary Development | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| OpenWRT v15.05 Kernel v4.4 | Y | Y | Y | Y | |||||
| OpenWRT v23.05 Kernel v5.4 | Y | Y | Y | Y | Y | Y | Y | Y | |
| OpenWRT v24.0x Kernel v6.6 | ES | ES | ES | ES | ES | ||||
| qsdk-11.5 Kernel v4.4 | Y | Y | Y | Y | |||||
| qsdk-12.5 Kernel v5.4 | Y | Y | Y | Y | Y | Y | Y | Y | |
| qsdk-13.0 Kernel v6.6 | ES | ES | ES | ES | ES | ||||
| ath11k Kernel v4.4 | Y | Y | Y | Y | |||||
| ath11k Kernel v5.4 | Y | Y | Y | Y | |||||
| ath12k Kernel v5.4 | Y | Y | Y | Y | Y | Y | Y | Y | |
| ath13k Kernel v6.6 | ES | ES | ES | ES | ES | ||||
| Wi-Fi SON | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| EasyMesh | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| nhxstaroam | |||||||||
| nhx_longbridge |
: One packet is lost when roaming and switching between different channels : Goping is sent once every 20ms. The switching time between different channels is 140ms, and the switching time within the same channel is 120ms. : High gain directional antenna; 10km+ - 2x2 17dBm directional antenna Desert environment 10km 300Mbps
- 4x4 30dBm directional antenna Desert environment 16km 700Mbps

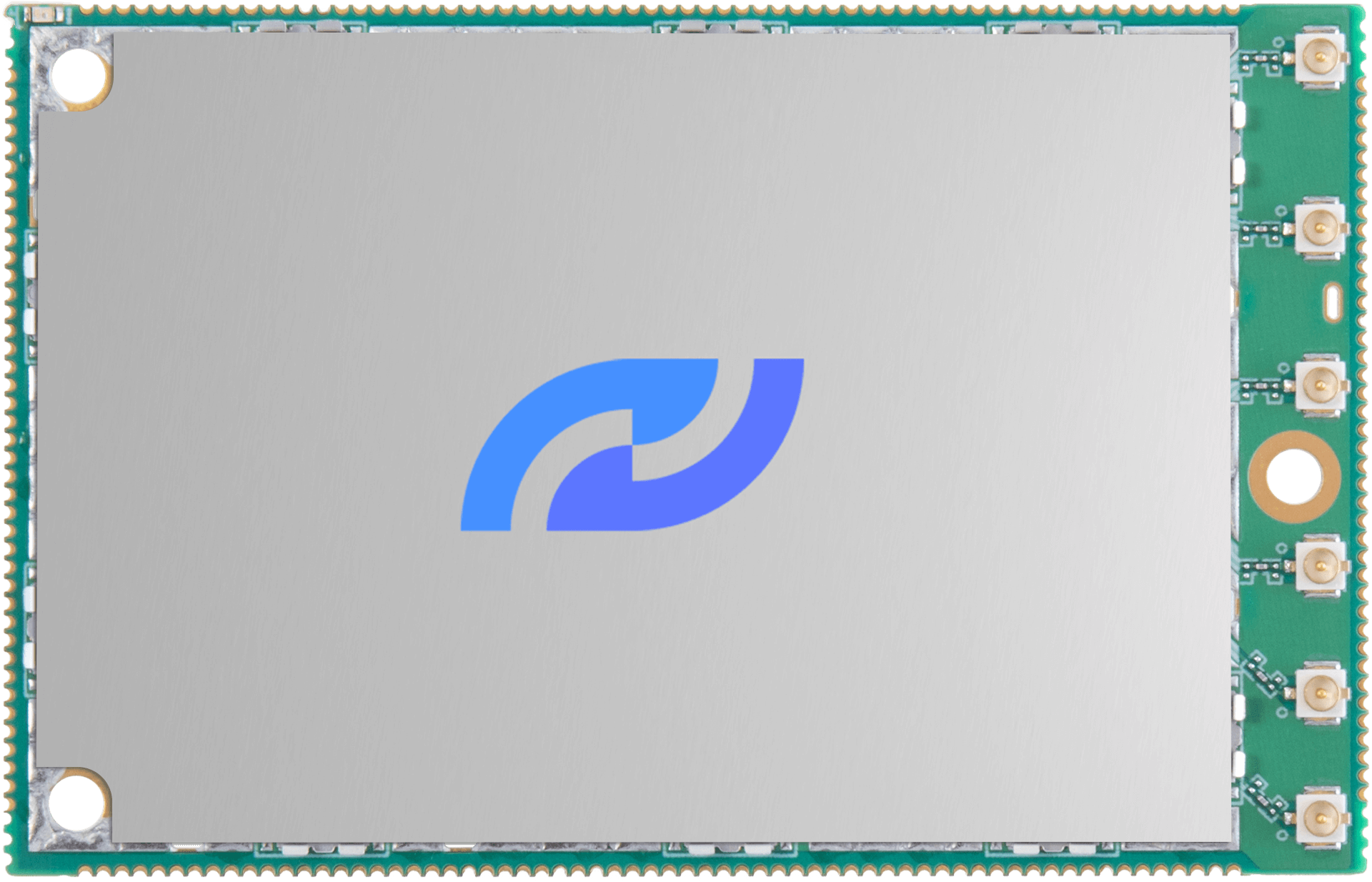

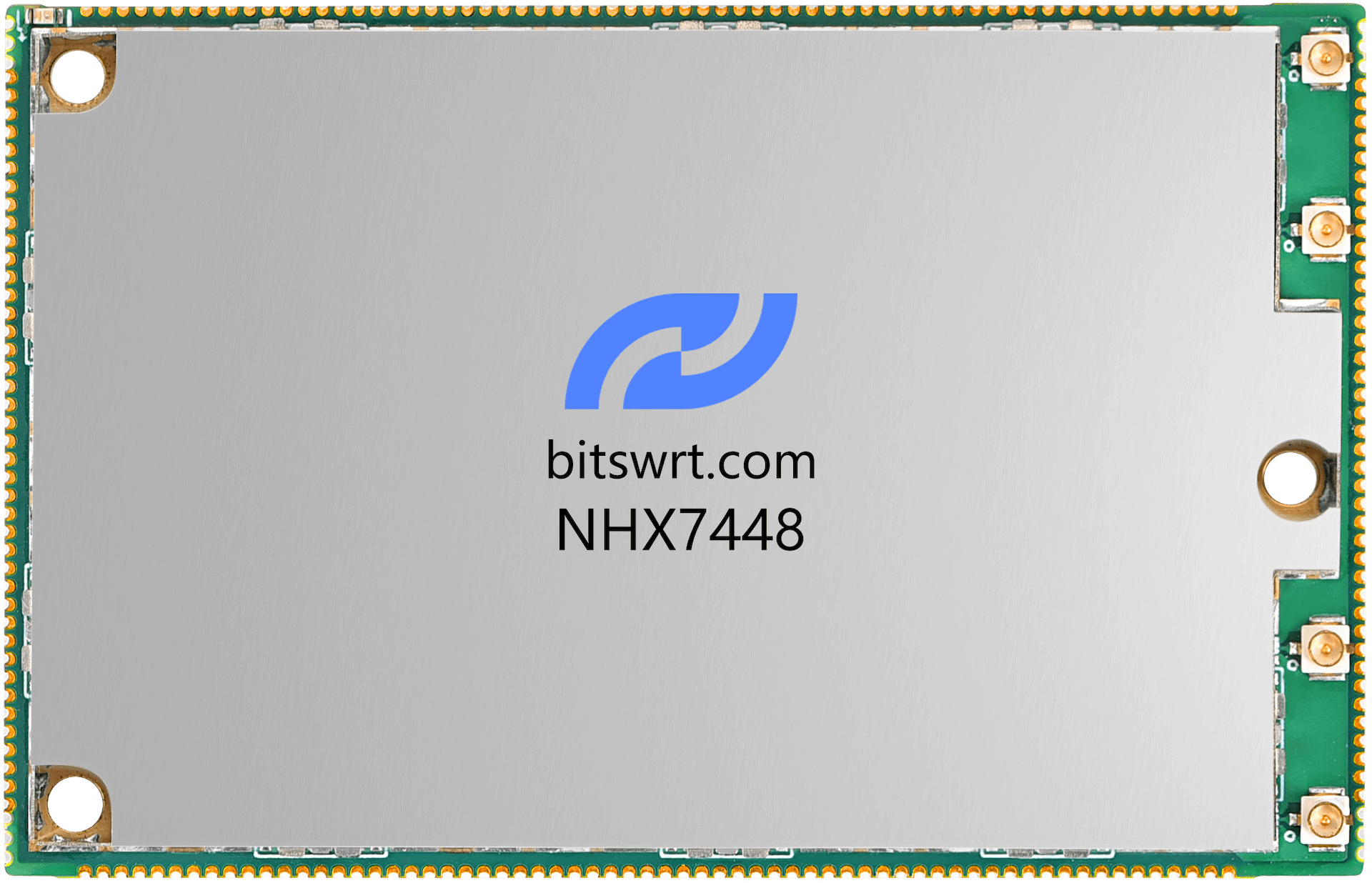

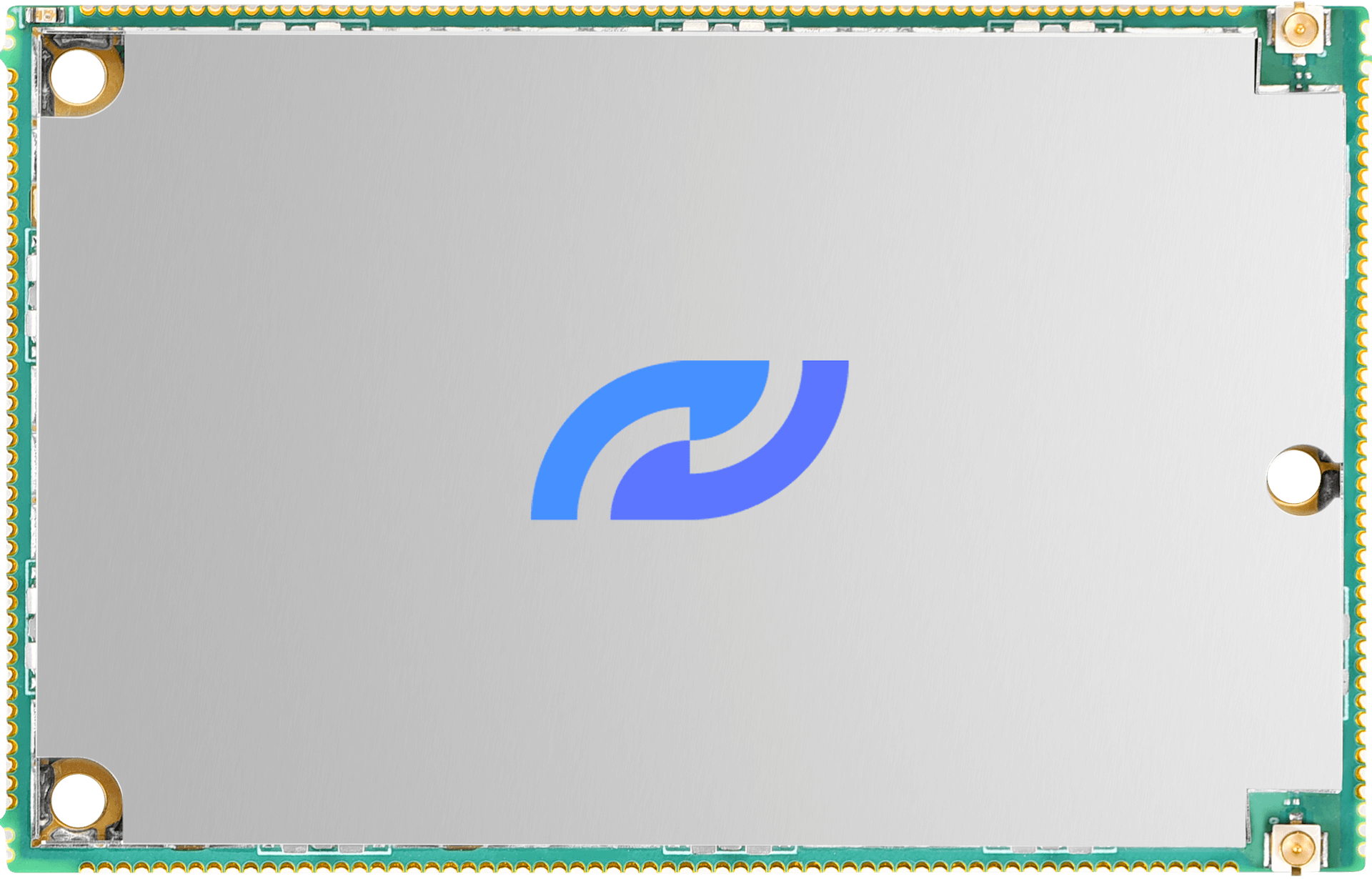

Product Image
